Consumption S-Band Radar in Three Coordinates with Pulse Doppler Technology and ≤30W Power Consumption

  • 1
  • 2

Certification : ISO

Model NO. : GM0923A012

Installation Mode : Ground Steel Bracket or Tripod

Application : Industry, Special Equipment

External Interfaces : Rj-45

Power Consumption : ≤30W

Transport Package : Aviation Box Packaging

Specification : X Band

Trademark : OME acceptable

Origin : China

HS Code : 8526109090

Supply Ability : 100pieces/Year

Customization : Available

Type : Sensor

Usage : Security Warning and Protection

MOQ : 10

Place of Origin : China

Brand Name : OEM

Contact Now

Basic Information

Model NO.GM0923A006
Working system
Phased array system (azimuth scanning+elevation scanning)/pulse
Doppler
Working band
S Band
Range of Radar
10.2km
Effective detection range
100m~10.0km(UAV; Drone)
Azimuth coverage
360°
Elevation coverage
≥40°
Detection speed
1.0m/s~85m/s
Azimuth accuracy
≤0.8°
Pitch accuracy
≤1.0°
Distance accuracy
≤10m
Data rate
≥0.2Hz
Data interface
RJ45/1 1CH Ethernet 10/100M port
Input power
≤250W(power dissipation) AC200-AC240(input)
Working temperature
-40ºC~+55ºC
Packaging & Deliver
Weight (N.W)
≤60kg
Structural dimensions1064mm*282mm*370mm
Consumption S-Band Radar in Three Coordinates with Pulse Doppler Technology and ≤30W Power Consumption

Consumption S-Band Radar in Three Coordinates with Pulse Doppler Technology and ≤30W Power Consumption

Consumption S-Band Radar in Three Coordinates with Pulse Doppler Technology and ≤30W Power Consumption



Product overview

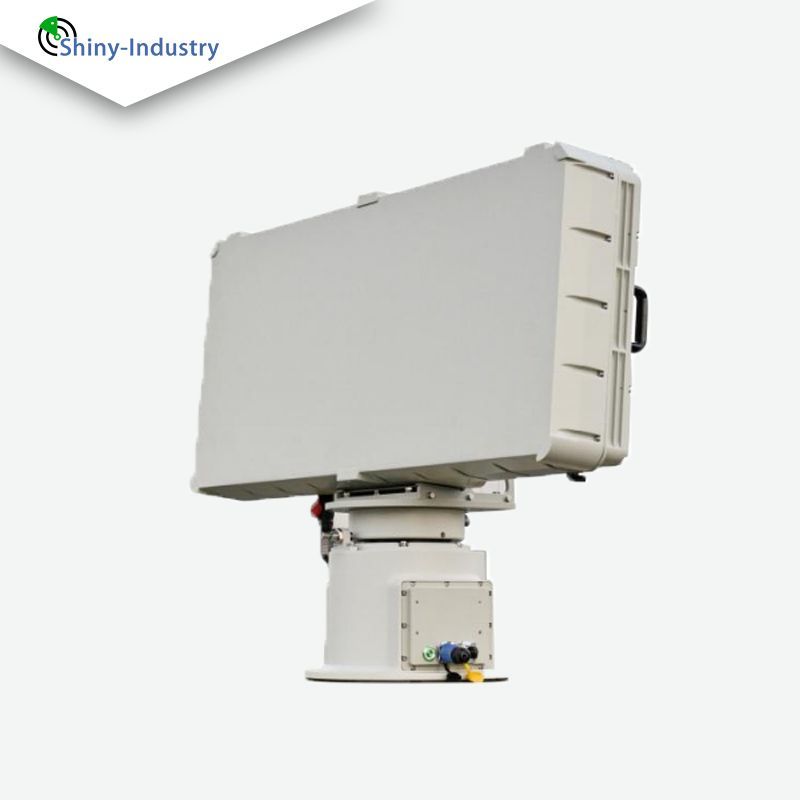

The XW/SR226-10200S is mainly composed of one radar array, one mechanical turntable, and one power adapter. It is used for the detection, surveillance, and target indication of micro/small civilian drones in key areas such as borders and perimeters. It can accurately provide trajectory information such as target orientation, distance, altitude, and speed.

Consumption S-Band Radar in Three Coordinates with Pulse Doppler Technology and ≤30W Power Consumption
Product features:

High real-time and high precision: anti clutter, continuous trajectory, high precision, able to output target coordinate information.

Strong adaptability to the environment: possessing the ability to work 24/7 and adapt to harsh environments such as night, rain, snow, haze, and dust.

High flexibility: Long range detection of targets, easy installation.

DBF technology: DBF technology can improve anti-interference ability by transmitting multi beam technology.

High cost-effectiveness: By continuously improving the product, while ensuring detection effectiveness, we achieve a perfect combination of product reliability, usability, and economy.

Consumption S-Band Radar in Three Coordinates with Pulse Doppler Technology and ≤30W Power Consumption
Consumption S-Band Radar in Three Coordinates with Pulse Doppler Technology and ≤30W Power Consumption
Consumption S-Band Radar in Three Coordinates with Pulse Doppler Technology and ≤30W Power Consumption
Consumption S-Band Radar in Three Coordinates with Pulse Doppler Technology and ≤30W Power ConsumptionConsumption S-Band Radar in Three Coordinates with Pulse Doppler Technology and ≤30W Power Consumption
Consumption S-Band Radar in Three Coordinates with Pulse Doppler Technology and ≤30W Power Consumption
